Importing timetables into Synergetic
To import a timetable into Synergetic:
- First import student classes into Synergetic. See:
Note: PrimaryTime imports the classes and timetable together.
- If needed, import or update subject classes into Synergetic. See Importing or updating subject classes in the Synergetic timetable.
- Select Module > Students > Timetable Import / Export.

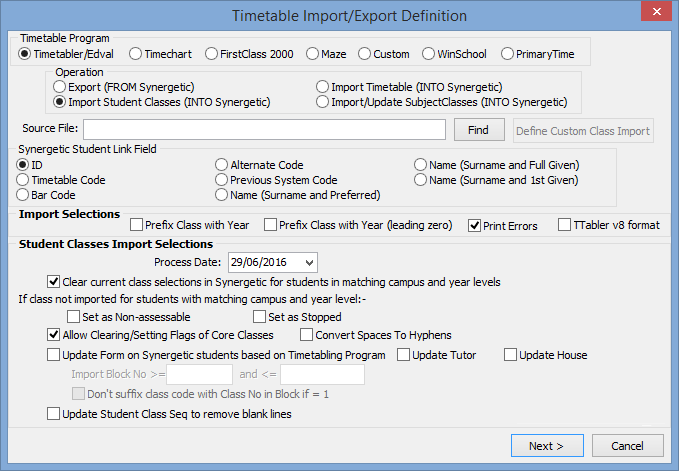

The Timetable Import/Export Definition window is displayed.
Tip: You can also access the timetable import/export functions by clicking
.
.gif)
- Select the Timetable Program you are importing from.
.gif)
- Select Import Timetable (INTO Synergetic) in the Operation area.
The Timetable Import/Export Definition window is redisplayed with different options.
- Select the source file to import timetabling data from. Either:
- type the file name into the Source File field
- click
to locate the file.
.gif)
- Specify general import selections.
.gif)
- Select the timetable program import settings.
Note: See Timetable Program Import Selections area fields below.
.gif)
- Click
.The Timetable Import/Export Synergetic selections window is displayed.
See Setting timetable import/export Synergetic selections.
Timetable Import/Export Definition window key fields and buttons
Timetable Program area fields
.gif)
Select the timetable program to import from or export to.
Note: Timetables cannot be imported from FirstClass 2000 through the Timetable Import/Export Definition window. Please contact Synergetic Management Systems for instructions to import timetables from FirstClass 2000.
Operation area fields and buttons
.gif)
Field
|
Description
|
|
Convert Synergetic data into a Timetabler, Time Chart or FirstClass 2000 file.
Note: Synergetic does not support exports to other timetable programs at present.
|
|
Import data from a supported timetable program to Synergetic.
|
|
Import student class information from a supported timetable program to Synergetic.
|
|
Import or update class information from a supported timetable program to Synergetic.
|
Synergetic Student Link Field area fields
.gif)
This area is used to link records in Synergetic and the timetable program during the import or export. If you are importing timetables, your selection depends on the link between the student and the timetable that you used in the timetabling program.
Note: These fields are not available for imports from PrimaryTime.
Field
|
Description
|
|
Link records by student ID.
|
|
Timetabler users only
Link records by generated or manually entered timetable code.
|
|
Link records by bar code field.
|
|
Link records by selected code.
Tip: This allows you to use a field other than the Synergetic ID code for mapping records from the timetable import file to Synergetic. For example, you might decide to use the student's name instead of their ID.
|
|
Link records by surname and preferred name.
|
|
Link records by surname and given names.
|
|
Link records by surname and first given name.
|
|
Link records by old system codes.
This maps the codes in the timetabling program to the Synergetic codes, maintained on the Codes tab of Current Student Maintenance.
|
Import Selections area fields
.gif)
Field
|
Description
|
|
Select to prefix the class code with the year level.
Tip: If a class has been given the same code for different year levels, this helps distinguish between the two classes by prefixing the class code in the year level. For example, if a class is given the code ENG (for English) in year 8 and the same code is given for year 9 English, the two classes become 8ENG and 9ENG.
|
|
Select to prefix the class code with the year level with a leading zero.
Tip: This helps you to sort your classes. For example, 8ENG becomes 08ENG.
|
|
Select to print errors automatically after the import.
Tip: If there are any anomalies they are be printed out if this field is selected. For example, a new student or staff member who has not been created in Synergetic.
|
|
Select if using Timetabler version 8 file formats.
Note: This selection is only available if the Timetabler program is selected.
|
Buttons

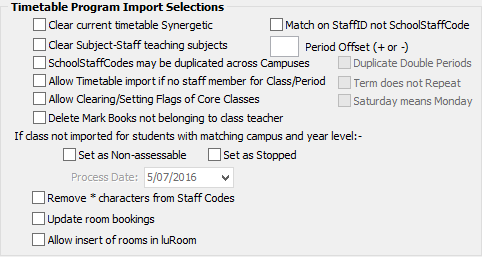

Timetable Program Import Selections area fields
The fields displayed depend on the selected timetable program.
.gif)
Timetable Program Import Selections area fields - Timetabler
.gif)
Field
|
Description
|
|
Select to clear all timetable records in the current year and term.
|
|
Select to clear all staff records in the current file year and term, at the current campus. This clears out any current information before the import process starts.
Note: The information about the campus is usually a field in the import file. Alternatively you can select it from the Setting timetable import/export Synergetic selections window.
|
|
Select to only search for staff at the specified campuses, if staff codes can be duplicated across campuses.
For example, a teacher at one campus has a staff code of ABC. Another teacher has the same code ABC at a different campus. In this case, Synergetic cannot use the staff code alone; the campus is also required to distinguish between teachers.
|
|
Select to allow the timetable to be imported even if no staff member is associated with the class and period.
For example, a study period has been set up as a class but does not have an allocated staff member.
|
|
Select to allow the clearing or setting of core class flags.
If the flag is cleared:
- core subjects cannot be cleared from the students
- imported classes that do not exist in the students current list are not set as stopped or non-assessable.
|
|
Select to delete any markbooks that were not created by the staff member who teaches the class.
|
|
Select to set the class to non-assessable, if a class is not imported for students with matching campus and year level.
|
|
Select to set the class to inactive, if a class is not imported for students with matching campus and year level.
Student classes should have been imported first. If subject class is set as Keep Active then it is not made inactive.
|
|
Processing date.
Note: The processing date defaults to today. You have the option to change the processing date, if you selected the Set as Stopped flag.
|
|
Select to remove non-alphanumeric characters from staff codes.
|
|
Select to insert rooms into the luRoom lookup table. See Maintaining lookup tables in the System maintenance manual.
|
|
Select to match records based on the staff Synergetic identifier not the staff code.
|
|
Offset required to align timetable period with Synergetic periods.
Note: Your periods in Synergetic may not tie in exactly with the periods in your timetabling program. For example, an offset of -1 makes period 2 in the timetable package equate to period 1 in Synergetic.
|
Timetable Program Import Selections area fields - Timechart
.gif)
Field
|
Description
|
|
Select to clear all timetable records in the current year and term.
|
|
Select to clear all staff records in the current file year and term, at the current campus. This clears out any current information before the import process starts.
Note: The information about the campus is usually a field in the import file. Alternatively you can select it from the Setting timetable import/export Synergetic selections window.
|
|
Select to only search for staff at the specified campuses, if staff codes can be duplicated across campuses.
For example, a teacher at one campus has a staff code of ABC. Another teacher has the same code ABC at a different campus. In this case, Synergetic cannot use the staff code alone; the campus is also required to distinguish between teachers.
|
|
Select to allow the timetable to be imported even if no staff member is associated with the class and period.
For example, a study period has been set up as a class but does not have an allocated staff member.
|
|
Select to allow the clearing or setting of core class flags.
If the flag is cleared:
- core subjects cannot be cleared from the students
- imported classes that do not exist in the students current list are not set as stopped or non-assessable.
|
|
Select to delete any markbooks that were not created by the staff member who teaches the class.
|
|
Select to set the class to non-assessable, if a class is not imported for students with matching campus and year level.
|
|
Select to set the class to inactive, if a class is not imported for students with matching campus and year level.
Student classes should have been imported first. If subject class is set as Keep Active then it is not made inactive.
|
|
Processing date.
Note: The processing date defaults to today. You have the option to change the processing date, if you selected the Set as Stopped flag.
|
|
Select to remove non-alphanumeric characters from staff codes.
|
|
Select to insert rooms into the luRoom lookup table. See Maintaining lookup tables in the System maintenance manual.
|
|
Select to match records based on the staff Synergetic identifier not the staff code.
|
|
Offset required to align timetable period with Synergetic periods.
Note: Your periods in Synergetic may not tie in exactly with the periods in your timetabling program. For example, an offset of -1 makes period 2 in the timetable package equate to period 1 in Synergetic.
|
Timetable Program Import Selections area fields - Maze
.gif)
Field
|
Description
|
|
Select to clear all timetable records in the current year and term.
|
|
Select to clear all staff records in the current file year and term, at the current campus. This clears out any current information before the import process starts.
Note: The information about the campus is usually a field in the import file. Alternatively you can select it from the Setting timetable import/export Synergetic selections window.
|
|
Select to only search for staff at the specified campuses, if staff codes can be duplicated across campuses.
For example, a teacher at one campus has a staff code of ABC. Another teacher has the same code ABC at a different campus. In this case, Synergetic cannot use the staff code alone; the campus is also required to distinguish between teachers.
|
|
Select to allow the timetable to be imported even if no staff member is associated with the class and period.
For example, a study period has been set up as a class but does not have an allocated staff member.
|
|
Select to allow the clearing or setting of core class flags.
If the flag is cleared:
- core subjects cannot be cleared from the students
- imported classes that do not exist in the students current list are not set as stopped or non-assessable.
|
|
Select to delete any markbooks that were not created by the staff member who teaches the class.
|
|
Select to set the class to non-assessable, if a class is not imported for students with matching campus and year level.
|
|
Select to set the class to inactive, if a class is not imported for students with matching campus and year level.
Student classes should have been imported first. If subject class is set as Keep Active then it is not made inactive.
|
|
Processing date.
Note: The processing date defaults to today. You have the option to change the processing date, if you selected the Set as Stopped flag.
|
|
Select to remove non-alphanumeric characters from staff codes.
|
|
Select to insert rooms into the luRoom lookup table. See Maintaining lookup tables in the System maintenance manual.
|
|
Select to match records based on the staff Synergetic identifier not the staff code.
|
|
Offset required to align timetable period with Synergetic periods.
Note: Your periods in Synergetic may not tie in exactly with the periods in your timetabling program. For example, an offset of -1 makes period 2 in the timetable package equate to period 1 in Synergetic.
|

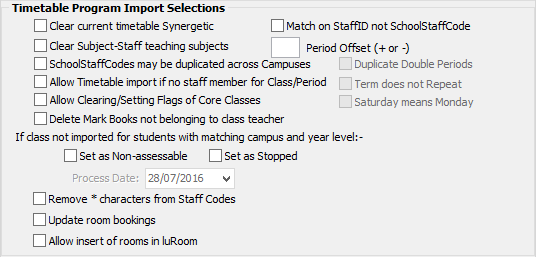

Timetable Program Import Selections area fields - Custom
.gif)
Field
|
Description
|
|
Select to clear all timetable records in the current year and term.
|
|
Select to clear all staff records in the current file year and term, at the current campus. This clears out any current information before the import process starts.
Note: The information about the campus is usually a field in the import file. Alternatively you can select it from the Setting timetable import/export Synergetic selections window.
|
|
Select to only search for staff at the specified campuses, if staff codes can be duplicated across campuses.
For example, a teacher at one campus has a staff code of ABC. Another teacher has the same code ABC at a different campus. In this case, Synergetic cannot use the staff code alone; the campus is also required to distinguish between teachers.
|
|
Select to allow the timetable to be imported even if no staff member is associated with the class and period.
For example, a study period has been set up as a class but does not have an allocated staff member.
|
|
Select to allow the clearing or setting of core class flags.
If the flag is cleared:
- core subjects cannot be cleared from the students
- imported classes that do not exist in the students current list are not set as stopped or non-assessable.
|
|
Select to delete any markbooks that were not created by the staff member who teaches the class.
|
|
Select to set the class to non-assessable, if a class is not imported for students with matching campus and year level.
|
|
Select to set the class to inactive, if a class is not imported for students with matching campus and year level.
Student classes should have been imported first. If subject class is set as Keep Active then it is not made inactive.
|
|
Processing date.
Note: The processing date defaults to today. You have the option to change the processing date, if you selected the Set as Stopped flag.
|
|
Select to remove non-alphanumeric characters from staff codes.
|
|
Select to insert rooms into the luRoom lookup table. See Maintaining lookup tables in the System maintenance manual.
|
|
Select to match records based on the staff Synergetic identifier not the staff code.
|
|
Offset required to align timetable period with Synergetic periods.
Note: Your periods in Synergetic may not tie in exactly with the periods in your timetabling program. For example, an offset of -1 makes period 2 in the timetable package equate to period 1 in Synergetic.
|

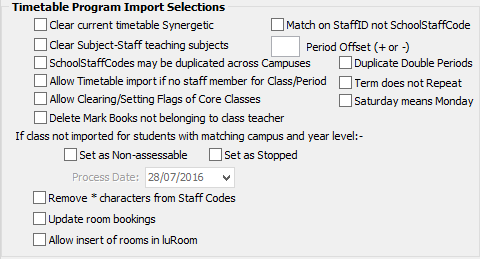

Timetable Program Import Selections area fields - WinSchool
.gif)
Field
|
Description
|
|
Select to clear all timetable records in the current year and term.
|
|
Select to clear all staff records in the current file year and term, at the current campus. This clears out any current information before the import process starts.
Note: The information about the campus is usually a field in the import file. Alternatively you can select it from the Setting timetable import/export Synergetic selections window.
|
|
Select to only search for staff at the specified campuses, if staff codes can be duplicated across campuses.
For example, a teacher at one campus has a staff code of ABC. Another teacher has the same code ABC at a different campus. In this case, Synergetic cannot use the staff code alone; the campus is also required to distinguish between teachers.
|
|
Select to allow the timetable to be imported even if no staff member is associated with the class and period.
For example, a study period has been set up as a class but does not have an allocated staff member.
|
|
Select to allow the clearing or setting of core class flags.
If the flag is cleared:
- core subjects cannot be cleared from the students
- imported classes that do not exist in the students current list are not set as stopped or non-assessable.
|
|
Select to delete any markbooks that were not created by the staff member who teaches the class.
|
|
Select to set the class to non-assessable, if a class is not imported for students with matching campus and year level.
|
|
Select to set the class to inactive, if a class is not imported for students with matching campus and year level.
Student classes should have been imported first. If subject class is set as Keep Active then it is not made inactive.
|
|
Processing date.
Note: The processing date defaults to today. You have the option to change the processing date, if you selected the Set as Stopped flag.
|
|
Select to remove non-alphanumeric characters from staff codes.
|
|
Select to insert rooms into the luRoom lookup table. See Maintaining lookup tables in the System maintenance manual.
|
|
Select to match records based on the staff Synergetic identifier not the staff code.
|
|
Offset required to align timetable period with Synergetic periods.
Note: Your periods in Synergetic may not tie in exactly with the periods in your timetabling program. For example, an offset of -1 makes period 2 in the timetable package equate to period 1 in Synergetic.
|
|
Select to duplicate double periods.
Tip: When you import double periods from WinSchool, Synergetic cannot distinguish the fact that the second period is for the same subject unless you select this box.
|
|
Select to indicate that that the term does not repeat.
If it is not selected, Synergetic imports the same information into all terms.
|
|
Select if your organisation has a six (or more) day rotating timetable.
|
Timetable Program Import Selections area fields - PrimaryTime
.gif)
Field
|
Description
|
|
Select to clear all timetable records in the current year and term.
|
|
Select to clear all staff records in the current file year and term, at the current campus. This clears out any current information before the import process starts.
Note: The information about the campus is usually a field in the import file. Alternatively you can select it from the Setting timetable import/export Synergetic selections window.
|
|
Select to only search for staff at the specified campuses, if staff codes can be duplicated across campuses.
For example, a teacher at one campus has a staff code of ABC. Another teacher has the same code ABC at a different campus. In this case, Synergetic cannot use the staff code alone; the campus is also required to distinguish between teachers.
|
|
Select to allow the timetable to be imported even if no staff member is associated with the class and period.
For example, a study period has been set up as a class but does not have an allocated staff member.
|
|
Select to allow the clearing or setting of core class flags.
If the flag is cleared:
- core subjects cannot be cleared from the students
- imported classes that do not exist in the students current list are not set as stopped or non-assessable.
|
|
Select to delete any markbooks that were not created by the staff member who teaches the class.
|
|
Select to set the class to non-assessable, if a class is not imported for students with matching campus and year level.
|
|
Select to set the class to inactive, if a class is not imported for students with matching campus and year level.
Student classes should have been imported first. If subject class is set as Keep Active then it is not made inactive.
|
|
Processing date.
Note: The processing date defaults to today. You have the option to change the processing date, if you selected the Set as Stopped flag.
|
|
Select to remove non-alphanumeric characters from staff codes.
|
|
Select to insert rooms into the luRoom lookup table. See Maintaining lookup tables in the System maintenance manual.
|
|
Select to match records based on the staff Synergetic identifier not the staff code.
|
|
Offset required to align timetable period with Synergetic periods.
Note: Your periods in Synergetic may not tie in exactly with the periods in your timetabling program. For example, an offset of -1 makes period 2 in the timetable package equate to period 1 in Synergetic.
|
Last modified: 22/12/2016 9:40:42 AM
© 2017 Synergetic Management Systems. Published 20 July 2017.
