Use the Structure tab to:
Example
The following report structure shows an example of a tiered report layout with sub-totals at each level:
Report Structure |
Lv 1 |
Lv 2 |
Lv 3 |
... |
Seq |
Description |
Detail |
Credit |
|||
---|---|---|---|---|---|---|---|---|---|---|---|
INCOME (Lv 1)
|
1 |
0 |
0 |
0 |
0 |
Income |
|
||||
|
Fee Income (Lv 2)
|
1 |
1 |
0 |
0 |
0 |
Fee income |
|
|||
|
|
Tuition Fees |
1 |
1 |
1 |
0 |
1 |
Tuition fees |
|
||
|
|
Boarding Fees (Lv 3) |
1 |
1 |
2 |
0 |
0 |
Boarding fees |
|
||
|
|
|
Accommodation |
1 |
1 |
2 |
0 |
1 |
Accommodation |
|
|
|
|
|
Catering |
1 |
1 |
2 |
0 |
2 |
Catering |
|
|
|
|
Total Boarding Fees (Lv 3) |
|
|
|
|
|
|
|
|
|
|
|
Administration Fees |
1 |
1 |
3 |
0 |
1 |
Administration fees |
|
||
|
|
Information Technology Levy |
1 |
1 |
3 |
0 |
2 |
Information Technology |
|
||
|
Total Fee Income (Lv 2) |
|
|
|
|
|
|
|
|
||
Total INCOME (Lv 1) |
|
|
|
|
|
|
|
|

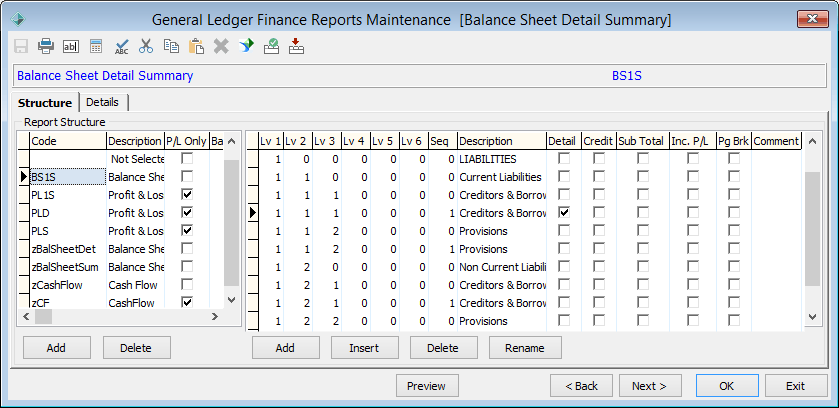

General Ledger Finance Report Maintenance - Structure tab key fields and buttons

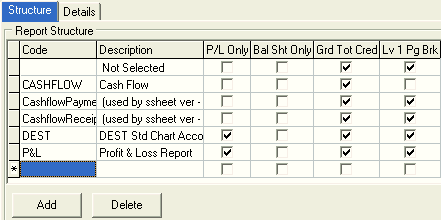

Left-hand grid area key fields
Field |
Description |
---|---|
Code |
Unique code for the finance report. |
Description |
Description of finance report. |
P/L Only |
Select if this report is a profit and loss report. Only profit and loss accounts are displayed in the list of available accounts. |
Bal Sht Only |
Select if this report is a balance sheet report. Only balance sheet accounts are displayed in the list of available accounts. |
Grd Tot Cred |
Select if the total of the report is normally a credit and you do not want to show as negative. That is, with brackets around the amount. For example, a profit and loss report where the profit figure would be a credit total but you want to show profits without brackets and losses with brackets. |
Lv 1 Pg Brk |
Select to enable a page break for every new level 1 heading entry. |

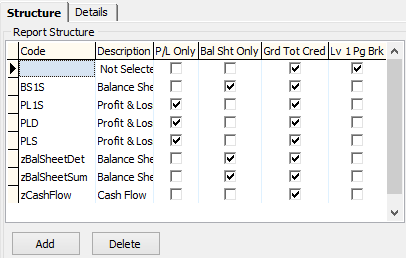

Left-hand grid area buttons
Button |
Description |
To add a new finance report:
|
|
Delete the highlighted finance report. |

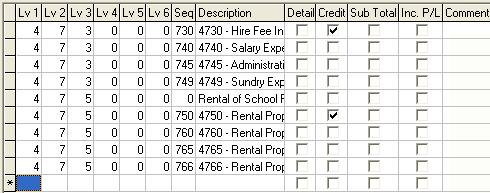

Right-hand grid area fields
Field |
Description |
||||
---|---|---|---|---|---|
Lvl 1 - Lvl 6 |
Levels define the grouping and layout of sections on the finance report. Three levels of grouping are available for the standard report. Six levels of grouping are available for custom reports. Each level is successively indented on the layout of the report. Although whole numbers are usually used as the level numbers, you can use numbers with up to 4 decimals if you want to insert new lines into the report. |
||||
Seq |
Defines the individual detail lines within each group. You can use numbers with up to 4 decimals if you want to insert new lines into the report. Note: Only report sections with a sequence number can have general ledger codes linked to them. A heading section is identified by a blank or zero Sequence field. |
||||
Description |
Description for the heading or account line. |
||||
Detail |
Select to display:
For example:
Clear to display the report structure line only. For example:
Note: In this example, Book, Subject & Photocopy Levies appears on the report but with the Detail flag selected the general ledger codes appear instead. |
||||
Credit |
Select to display credits without the reverse sign on the report. For example, Tuition fees 53009.00. This avoids the confusion from brackets being used for income, liability or ownership accounts. If the field is cleared, and credits are posted to income accounts, the total appears with brackets, to indicate a negative quantity. For example, Tuition fees (53009.00). |
||||
Sub Total |
Select to sub-total all the structure lines in the same group that are above the position that it is placed. For example, the following three items are summarised in the fourth line: |
||||
Lv 1 |
Lv 2 |
Lv 3 |
Seq |
Description |
|
1 |
1 |
1 |
0 |
Boarding Fees |
|
1 |
1 |
1 |
1 |
Day Boarders |
|
1 |
1 |
1 |
2 |
Full Boarders |
|
1 |
1 |
1 |
3 |
Sub Total (and structure line description) |
|
Grand totals can be given the name of the detail line if there is no general ledger code linked and the Sub Total flag is not selected. Otherwise the total is named Total Operating Surplus/(Deficit). |
|||||
Inc P/L |
If the report is a balance sheet report, include the net total of all profit and loss accounts for the period selected. The profit and loss total is calculated from all general ledger accounts that have the Profit Loss Account flag set on the General tab. See General Ledger Maintenance - General tab. |
||||
Pg Brk |
Add a page break to force a new page on commencement of this section in the finance report. In the following P&L (profit and loss) example, a page break has been added for all sections except the common ones:
|
||||
Comment |
Comment for the report section. |
Right-hand grid area buttons
Button |
Description |
---|---|
To add a new structure lines in the finance report:
|
|
Insert a new structure line above the highlighted line in the finance report. |
|
Delete the highlighted detail entry in the finance report. |
|
Rename the highlighted finance report structure line. Note: Once you have allocated G/L codes to a structure line you must use this button to rename the line and not simply change the numbers in the grid. |
Last modified: 14/04/2016 1:13:21 PM
See Also Maintaining general ledger finance reports |
