Linking documents using tag lists

You can import one or more documents and either:

You can import the documents and attach them to either the:

To link a document, spreadsheet or picture to a number of different community members at once:

  1. Create your tag list. See:

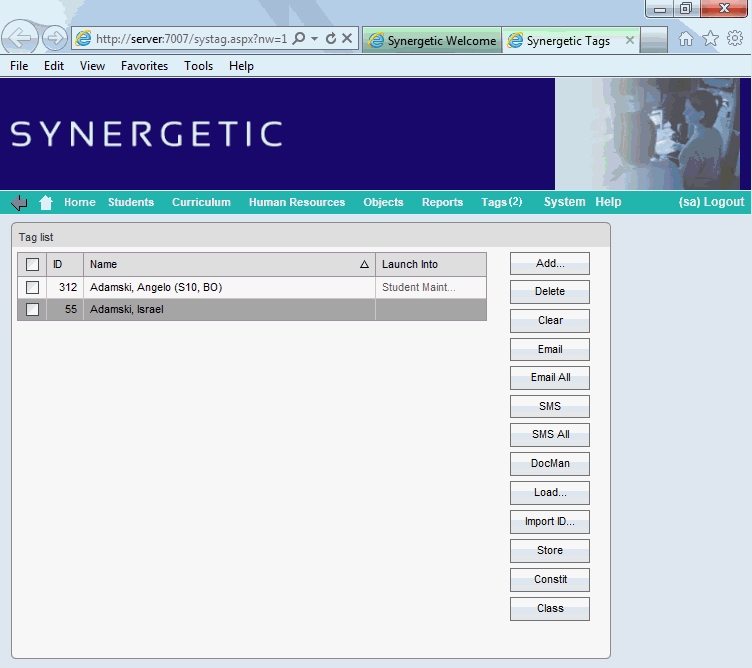

    The Tag List window is displayed.

    Tag List window

  2. Click Docman button (synweb).

    The Add Document window is displayed.

    Add Document window (synweb, IE look)

    Note: The Add Document window may appear slightly different depending on the browser that you are using.

  3. Click Browse... button (Browse ellipses, Synweb).gif.

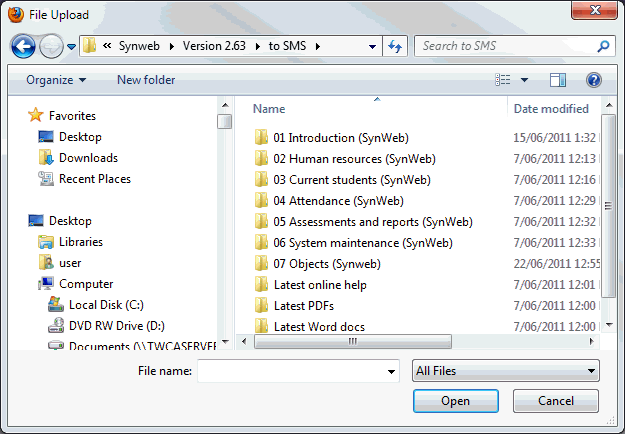

    A window is displayed, similar to the example below.

    File Upload window

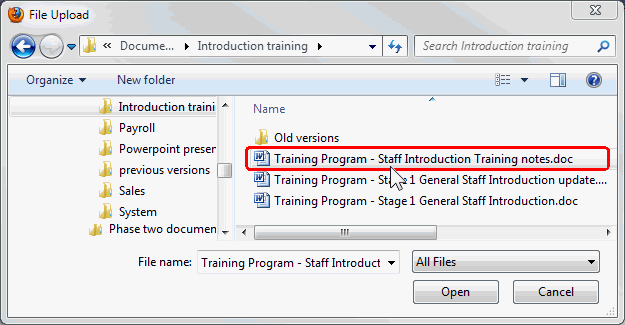

  4. Locate and select the document, spreadsheet or photo you want to import.

    File Upload window

  5. Click Open button.

    The selected file name appears next to the Source Path field.

    The Source Date updates to the current day's date.

    Add Document window (synweb, cutdown, IE look)

    Note: The file name is automatically formatted in a UNC format. See the Only Store File Path field description below.

  6. Select a Document Classification.
  7. Select a Source Code.
  8. Type in a Source Reference.
  9. Type in a Description.
  10. Click Save button.

    The documents, or their links, are added to the community members' available documents.

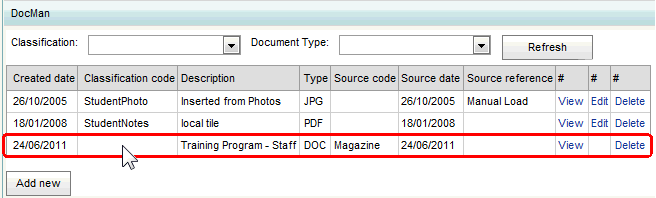

    Student Maintenance - DocMan bar (cut down)

  11. Repeat steps 2 through 10 until there are no more documents to link, or embed, for the community member.

Add Document window key fields

Field

Description

Source Type

Source type of the document. Select either:

  • File to import a file from your computer into the Synergetic database
  • URL to link to a website.

Source Path

Directory path of the source document, the document name and its file extension if adding a document on a file server or PC.

This field is empty if the file has been embedded in the Synergetic database.

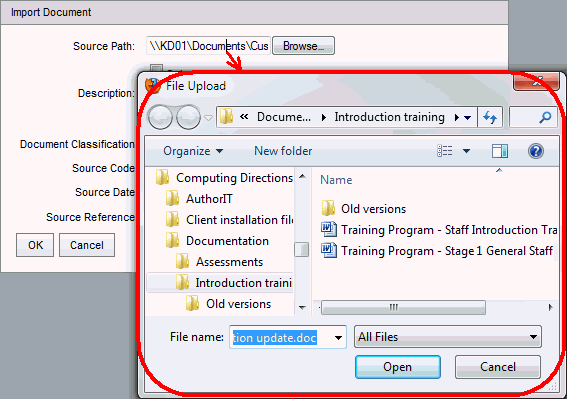

Tip: Click on the Source Path field to change the document you are adding.
Import Document window (reselect document)

Source Date

Date that the source document was created.

For example, if you are importing a historical picture you might specify the date when the picture was taken.

This defaults to the current date and time for new entries.

Classification

Classification of the document.

Document classifications are maintained in the luDocumentClassification lookup table. See Maintaining lookup tables in the Synergetic System maintenance manual.

Source Code

Source of the item. Typical examples include:

  • Archive
  • Magazine
  • Newspaper
  • School Photo.

Document sources are maintained in the luDocumentSourceCode lookup table. See Maintaining lookup tables in the Synergetic System maintenance manual.

Source Reference

Cross-reference to the source. For example the name, issue date and page of a newspaper where the photograph appeared.

Description

Meaningful description for the document.
