Online form builder - Elements tab

You can use the Elements tab to add elements that define the content of forms.

For example, Select input elements define drop-down lists.

Country field (post data bind)

You can select:

Note: For information about adding elements, see Adding elements.

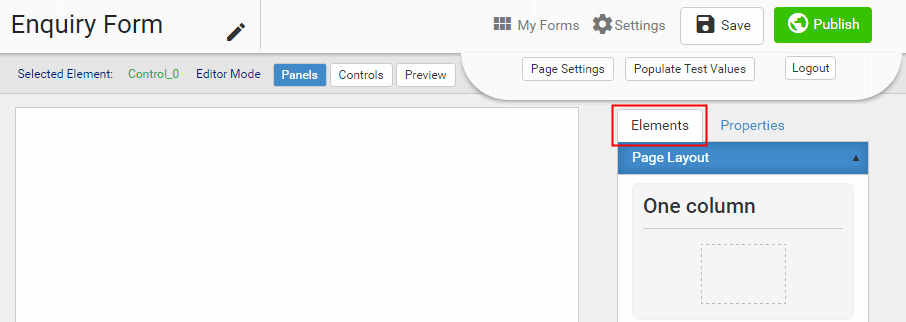

Opening the Elements tab

Online form builder - Elements tab key elements

You can use the following tables to determine the functionality of the elements in each sub-tab.

Page Layout sub-tab elements

Element

Description

One column element

Creates a one column page layout panel element that can contain other form elements.

Note: You need to define the page layout before you can add additional elements. See Defining the page layout.

Two columns element

Creates a two column page layout panel element that can contain other form elements.

Note: You need to define the page layout before you can add additional elements. See Defining the page layout.

Input Controls sub-tab elements

Element

Description

Text input element

Creates a text field that can validate information to ensure users enter correct details.

Mobile phone validation

Note: For information about validation rules, see Applying validation rules.

Button element

Creates a button.

Button style example

You can create:

Text area element

Creates an expandable text area that can validate information to ensure users enter correct details.

Additional comments text area example

Note: For information about validation rules, see Applying validation rules.

Label text element.gif

Creates a website URL field that can validate information to ensure users enter correct details.

Note: For information about validation rules, see Applying validation rules.



Select Controls sub-tab elements

Element

Description

Select input element

Creates a drop-down list that can be populated with Synergetic lookup table values.

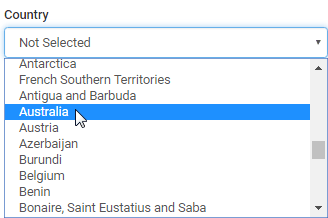

Country field (post data bind)

Note: For information about populating Select input elements with lookup table values, see Populating drop-down lists with Synergetic lookup table values.

Checkbox input element

Creates a checkbox.

Full fee checkbox example

Date picker element

Creates a date picker.

Date picker example

HTML Elements sub-tab elements

Element

Description

Heading element

Creates an HTML heading.

HTML text element

Creates static HTML text.

HTML text example

HTML bar element

Creates a dividing line to separate content.

Activity Controls sub-tab elements

Element

Description

Activity name button

Creates an activity flag that can be mapped to activities defined in the luActivity lookup table. See luActivity lookup table in the Synergetic System maintenance manual.

Open day example

Note: For information about mapping Activity Name elements to Synergetic activities, see Mapping activity elements to Synergetic activities.

Other controls sub-tab elements

Element

Description

File uploader element

Creates a file uploader to allows users to attach documents when they complete a form.

Note: You can only have one file uploader.

Last modified: 16/09/2016 4:03:23 PM
