Identification name for the selected element.

Select a Synergetic object library from the drop-down list to map to the selected element.

See Mapping elements to Synergetic fields.

Once you have selected an object library you can select a field using the Field/Param Mapping property. See below.

Note: You cannot publish a form if there are elements without mapping.

Synergetic data library mapped to the selected element.

Note: This property is read-only.

Once you have selected a Synergetic object library using the Object Mapping property you can use this property to select a field within the library.

See Mapping elements to Synergetic fields.

Note: You cannot publish a form if there are elements without mapping.

Select a Synergetic lookup table to populate its values into the selected Select input element.

For example, you could populate lookup table values from the luCountry lookup table to allow users to select their home country.

See Populating drop-down lists with Synergetic lookup table values.

Type into the field to change the text label displayed above the selected element.

See Updating element text.

Type into the field to change the text of the selected Button element.

See Updating element text.

Type into the field to change the heading text of the selected Heading element.

See Updating element text.

Type into the field to change the text displayed in the selected HTML text element.

See Updating element text.

Select an activity from the drop-down list to map the activity to the selected Activity Name element.

See Mapping activity elements to Synergetic activities.

Note: You can populate this drop-down list by selecting the FormEditorFlag field in the luActivity lookup table. See luActivity lookup table in the Synergetic System maintenance manual.

Note: You cannot publish until all activity elements have been mapped to activities from the luActivity lookup table. See Resolving publishing errors.

Select whether a comment field is provided for the selected Activity Name element.

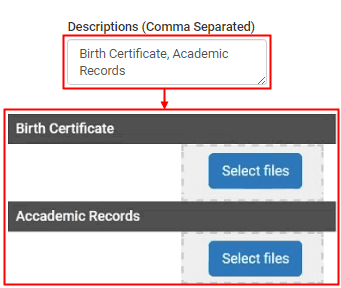

Type comma-separated descriptions into this property to define sections of the selected File uploader element.

Select a validation rule for the selected element that determines whether correct information is entered. You can select to validate for:

• emails
• numbers only
• URLs
• phone numbers
• regular expressions.

For example, the following field has an email validation that displays a notification if the field does not contain a valid email address.

See Applying validation rules.

Type into the field to define the default text for the selected Input Control text element.

See Defining default values.

Select or deselect the flag to define the default state of the selected:

• Checkbox element
• Activity Name element.

See Defining default values.

Type into the field to define the test value of the selected:

• Text input element
• Label text element.

See Defining test values.

Displays the maximum allowable number of characters for the selected:

• Text input element
• Text area element
• Label text element.

Note: This property is read-only.

Select a style option from the drop-down list to apply the style to the selected element.

See Applying element styles.

Select a visual option from the drop-down list.

Select this field to prevent form submission if the user has not populated the selected element.

See Defining element statuses.

Clear this field to make the selected element read-only.

See Defining element statuses.

Clear this field to hide the selected element.

See Defining element statuses.
