luReportResultTypeMaskExpanded lookup table

Description

The luReportResultTypeMaskExpanded lookup table is used to display valid entries when entering results in Student Results Maintenance. The lookup values displayed depend on the result type for the subject assessment area.

Also see Maintaining student results in the Assessments and reports manual.

Examples

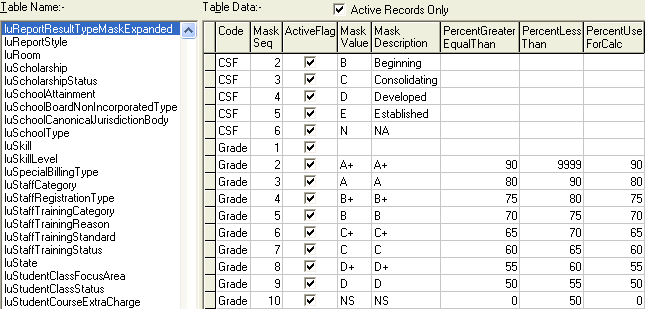

Configuration File Maintenance (luReportResultTypeMaskExpanded)

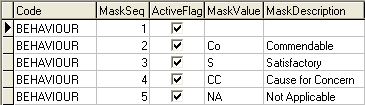

In the following example, entries are set up for the BEHAVIOUR result type.

These are available from drop-down lists when entering results on the Student Results Maintenance window. See Maintaining student results in the Assessments and reports manual.

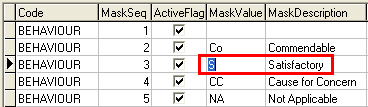

Student Results Maintenance - All Students tab (luReportResultTypeMaskExpanded)

To achieve this, the Asks questions assessment area has had the Result Type set to BEHAVIOUR, which links the assessment area to the mask drop-down list. See Subject Assessment Maintenance - Area tab - Area sub-tab in the Assessments and reports manual.

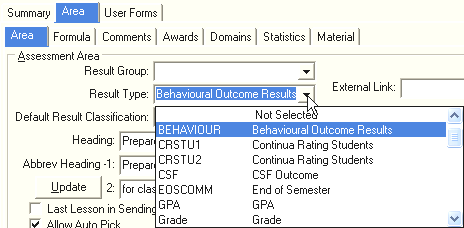

Subject Assessment Maintenance - Area tab - Area sub-tab (Result Type)

Fields

Field	Description

Code	Unique code used to identify the report result type. See luReportResultType lookup table.
MaskSeq	Order that the masks are displayed.
ActiveFlag	Clear this field to make the entry inactive.
MaskValue	Value recorded in the results field on the Student Results Maintenance window. In the example used above, when the user selects Satisfactory this applies the accompanying MaskValue as the student's result. In this case, S.
Mask- Description	Description as it appears on one of the tabs of the Student Results Maintenance window.
Percent- GreaterEqual- Than / Percent- LessThan	Range used by calculation procedures to determine a converted result. For example, convert 95% to an A.
Percent- UseForCalc	Alternative percentage used by calculation procedures. For example, a result of 'A' might be treated as 95% in calculations.
ModifiedDate	Date and time the lookup table entry was last modified.
ModifiedUser	User that last modified the lookup table entry.

Last modified: 23/09/2014 3:42:42 PM
