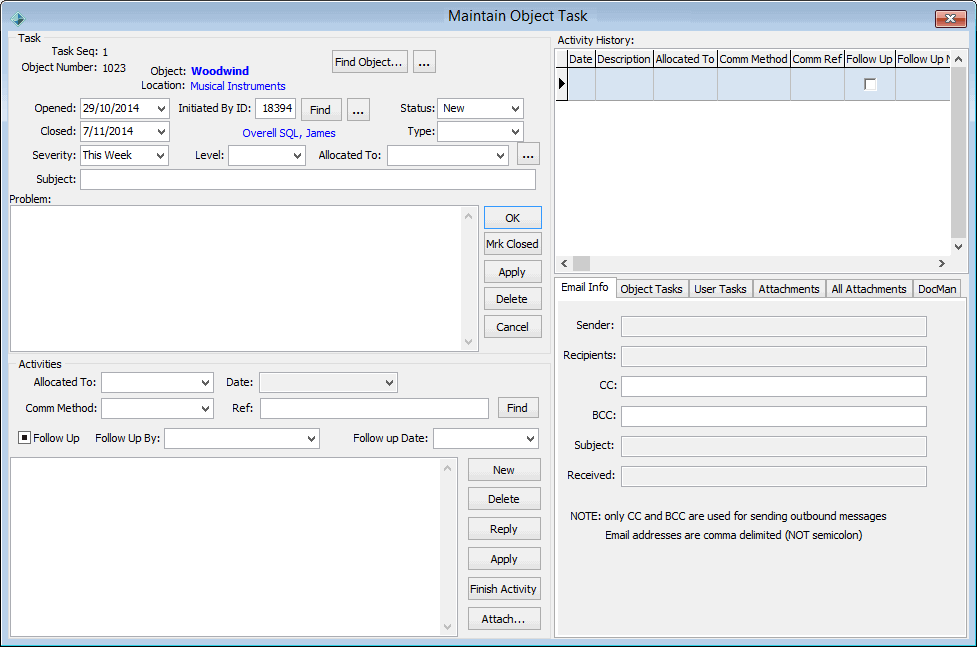

Maintain Object Task window

The Maintain Object Task window is used to maintain object tasks.

Opening the Maintain Object Task window

Task area key fields and buttons

Fields

Field

Description

Task Seq

Task sequence number. This is the unique identifier for the task.

Object Number

ID number of the object related to the task.

Object

Description of the object related to the task.

Location

Textual description of the object's location.

Opened

Date that the task was created.

Initiated By ID

Name of the person who initiated the task.

Status

Current status of the task.

For example, New, Waiting for Info, Completed.

Closed

Date that the task was closed, if activity has finished.

Type

Select the object type.

Severity

Severity rating of the problem that the task is aimed to fix.

For example, severity can be rated on a level of 1 to 10 with 10 being very severe and 1 being minor.

Note: Severity values are defined in the luObjectTaskSeverity lookup table. See luObjectTaskSeverity lookup table in the System Maintenance manual.

Level

Priority level for the task. For example, a Level 1 task has more priority than a Level 3 task.

Allocated To

Name of the person who has been allocated the task.

Subject

Brief description of the task.

For example, Paint Front Door, Clean Blinds.

Buttons

Button

Description

Find Object button (Object Search field)

Search for an object. See Searching for objects.

Launch button (Object Search field)

Launch Object Maintenance to view or update the details of the selected object. See Maintaining objects.

Find button (Initiated by ID field)

Find the community member that person that initiated the task.

Launch button (Initiated by ID field)

Launch Object Maintenance to view or update the details of the selected object. See Maintaining objects.

Launch button (Allocated To field)

Launch Community Maintenance for the selected person.

OK button

Saves and closes the current window.

Mrk Closed button

Update the Closed field with the current date and time.

The following window is displayed.

Confirm - About to mark this task as closed

Apply button

Save the changes and continue editing.

Delete button

Delete the current task and close the window.

The following window is displayed.

To delete the current task:

  1. Type delete.
  2. Click OK button.

    Tip: You can type in either upper case or lower case.

Cancel button

Cancel changes made since last saving and close the window.

Activities area key fields and buttons

Fields

Field

Description

Allocated To

Name of the person who has been allocated the activity.

Date

Date that the activity was created.

Comm Method

Method of communication to the person.

For example, phone, email or personal approach.

Note: This field is configured using the luObjectTaskCommunicationMethod lookup table. See Maintaining lookup tables in the Synergetic System maintenance manual.

Ref

Reference information supporting the communication.

For example, email address used to email the person.

Follow Up

Select if a follow up communication is required with the person allocated the activity.

Follow Up By

Person who is following up about the activity.

Follow Up Date

Date the person is scheduled to follow up about the activity.

Buttons

Button

Description

Find button

Start the Staff Search window to find a staff member to allocate the task to.

New button

Create a new activity.

Delete button

Delete the current task and close the window.

The following window is displayed.

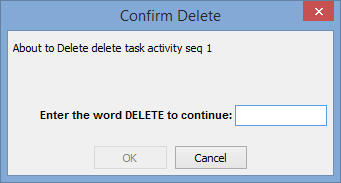

Confirm Delete - About to delete task

To delete the current task:

  1. Type delete.
  2. Click OK button.

    Tip: You can type in either upper case or lower case.

Reply button

Reply to an email.

Apply button

Save the changes and continue editing.

Finish Activity button

Mark the activity as finished.

Finish & Send button

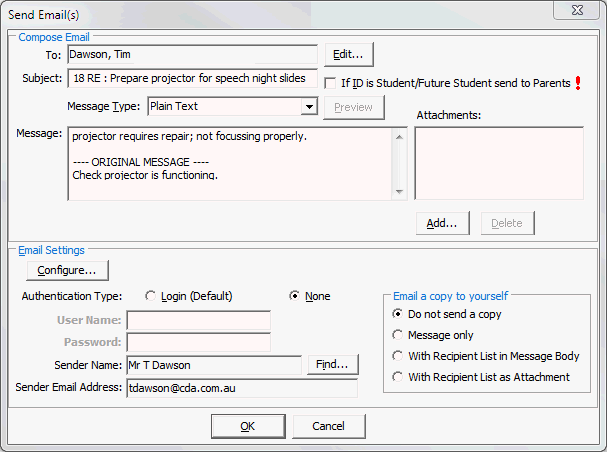

Send an email regarding an activity. The Send Email(s) window is displayed:

Object Tasks Send Email window

Note: This button is only displayed if you are replying to an email.

Attach... button (ellipses)

Add a file attachment to an email.

Activity History area fields

See the Activities area above for details of the fields in the Activity History area.

Email Info sub-tab

The Email Info sub-tab contains the standard email sender and subject fields to allow you to specify who the email is sent to.

Object Tasks sub-tab

The Object Tasks sub-tab displays other object tasks for the selected object.

Fields

Field

Description

Include Closed Tasks

Select to display closed tasks as well as current tasks.

The remaining fields on this sub-tab are a subset of the fields on the Object Tasks window. See the Unallocated Tasks grid area key fields in the Object Tasks window.

User Tasks sub-tab

The User Tasks sub-tab displays other object tasks for the person the tasks are allocated to.

The fields on this sub-tab are a subset of the fields described in the Task area key fields and buttons above.

Attachments sub-tab

The Attachments sub-tab displays the details of any attachments to the current email. Use the Attach... button (ellipses) button to add a file attachment to the current email message.

All Attachments sub-tab

The All Attachments sub-tab displays the details of all attachments that have been sent.

DocMan sub-tab

The DocMan sub-tab displays the details of all documents related to the object task. For example, a photograph of the maintenance issue to address or a diagram of how a task should be completed.
