Configuring NAB Transact

NAB Transact is the default payment gateway used by Synergetic to securely store online payment and credit card details.

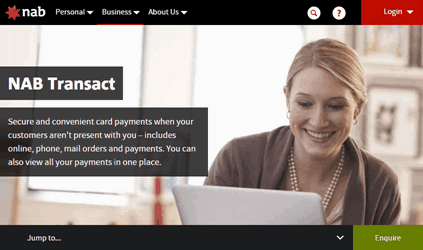

Note: For further information, visit the NAB Transact website.

You can configure NAB Transact by processing:

• test payments to ensure the gateway is operating correctly.

Important: Synergetic highly recommends testing NAB Transact payments on a test server and database to avoid mixing test and live data.

• live payments to allow Community Portal users to make online payments.

Note: For security reasons, full credit card details cannot be stored in the Synergetic database.

Processing test NAB Transact payments

You can process test NAB Transact payments to ensure the gateway is operating correctly.

To process test NAB Transact payments:

1. Set up NAB Transact as an online payment merchant using test merchant ID and password. See Setting up NAB Transact as an online payment merchant.
2. Ensure the Live:EnabledFlag configuration setting is set to False. See Live:EnabledFlag configuration setting.

   Important: Do not set the Live:EnabledFlag configuration setting to True until thorough testing has been performed because live credit card details and money will be processed.

3. Customise test NAB Transact configuration settings. See Customising test NAB Transact configuration settings.
4. Log into the Community Portal.
5. Confirm the following warning is displayed:



   NAB Transact is now configured to process test payments.

   Note: The Community Portal can only accept payments if SSL (secure sockets layer) is enabled on your IIS server. Contact your IT Administrator.

6. Process test NAB Transact payments to check settings. See Processing test online payment data.
7. Verify that test NAB Transact payments are being processed correctly. See Verifying test online payment data.

Processing live NAB Transact payments

To process live NAB Transact payments:

1. Set up NAB Transact as an online payment merchant using your live merchant ID and password. See Setting up NAB Transact as an online payment merchant.
2. Customise live NAB Transact configuration settings. See Customising live NAB Transact configuration settings.
3. Set the Live:EnabledFlag configuration setting to True. See Live:EnabledFlag configuration setting.
