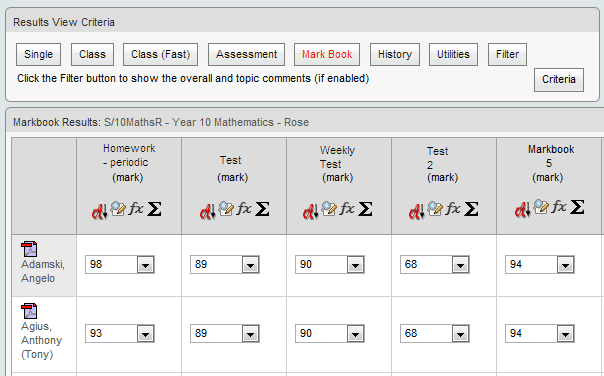

Results Maintenance - Mark Book window

Use the Mark Book window to record results for mark book areas of assessment for the selected class. For example, topic tests and assignments that are not usually part of the mainstream class assessment. These assessments are not usually printed on semester reports but can be.

Student mark book results are stored for each reporting period so that you can enter a fresh set of results each period or term if required. The setup of mark book areas is linked to classes and can be copied across reporting periods throughout the year if required, provided that the correct semester or term creation rules have been set up.

See Maintaining student file semesters in the Synergetic Curriculum manual. Also see Subject Assessment Maintenance - Summary tab - Mark Book sub-tab in the Synergetic Assessments and reports manual.

Note: SynWeb will display the following window if changes have not been saved.

Results Mainrtenance (Confirm Navigation)

You must always click Save All button before you move to another screen to avoid losing your changes.

Tip: The class information at the top of the window can be modified in Synergetic System Maintenance. For example the default setting Results Maintenance panel header (long, synweb) can be modified to display a shortened version Results Maintenance panel header (short, synweb). See PanelHeader configuration setting in the Synergetic System Maintenance manual.

Opening the Mark Book window

Results Maintenance - Mark Book window fields, buttons and links

Grid area fields

Field

Description

Name

Name of each student in classes covered by the assessment area.

Assessment area

Each column contains results for each of the mark book assessment areas for this class, recorded against each student.

Note: The fields displayed depend on the filter settings. See Using the Results Maintenance filter.

Field icons

Icon

Description

PDF icon

Generate and preview the student's report.

Internet Explorer - Synweb student report

Bulk edit icon

Enter the same result in this column for all students. This is useful for S/N style result types (satisfactory / non-satisfactory) where most students would receive an S. See Entering results in bulk.

Bulk Set Results window

Results Maintenance - Sort by Columns Icon

Sort the grid based on criteria selected in the Sort by Columns window.

Select the order in which sort criteria are applied, and if this is in Ascending or Descending order.

Results Maintenance - Sort by Columns window

Note: You can save the order of the students based on the entered criteria as a rank. Select Store rank into field and choose a field from the drop-down list that this rank information will be saved into.

Click Ok button (synweb, small k).gif to sort columns and apply a rank if selected.

Click Reset button (synweb) to show the default method of sorting the columns, and Ok button (synweb, small k).gif to apply this default method.

See Sorting and ranking students in the Synergetic Assessments and reports manual for more information.

formula (fx)  button (synweb)

Select to edit the results calculation formula for this result.

Results Calculation Formula window (synweb)

Statistics (sum sign)  button (synweb)

View the statistics for this result.

View Results Statistics window (synweb)

Eye icon (synweb)

Toggle whether the individual mark book item is displayed in the Community Portal. If the mark book item is not displayed in the Community Portal, the Closed eye icon icon is displayed. Hold the mouse over the icon to see at what level the mark book publishing has been disabled.

Tip: Mark books can be displayed or hidden in the Community Portal at the level of the individual assessment, the class, or subject assessment.

Buttons

Button

Description

Save All button

Save the results you have entered.

Maintain button

Open the Staff Mark Book window to maintain the mark book.

See Maintaining mark books.

Common buttons

Button

Description

Single button

View and maintain:

  • results for individual students
  • topic comments
  • overall comments.

See Results Maintenance - Single window.

Class button

View results for all students in the class. You can maintain results for a single student or for all students on this window. See Results Maintenance - Class window.

Class (Fast) button (synweb)

View and maintain results for all students in the class simultaneously with other staff members. See Results Maintenance - Class (Fast) window.

Assessment button

View or modify results for any student belonging to the assessment code of the class you are currently processing, if you have security access. See Results Maintenance - Assessment window.

Mark Book button

Maintain the mark book assessment results for all students in the class. See Results Maintenance - Mark Book window.

PTI button (synweb)

Maintain the parent teacher interview request statuses for all students in the class. See Results Maintenance - PTI window.

History button

Show results for other classes the student is taking. See Results Maintenance - History window.

Utilities button

Maintain defaults applied to individual students and classes. See Results Maintenance - Utilities window.

Filter button

Add or remove fields from display on results pages. See Using the Results Maintenance filter.

Criteria button

Display the Results Maintenance Search window to select a different class.

Results maintenance search (synweb, cut down)

Save All button

Save all changes made to results.

Apply Calculations button (synweb)

Apply results calculations to a student or class.

Find and Replace (F2) button (synweb)

Find or replace a word or phrase within the comment fields.

Spell Check (F8) button(synweb)

Spell check all fields.

Last modified: 5/09/2014 4:13:48 PM
