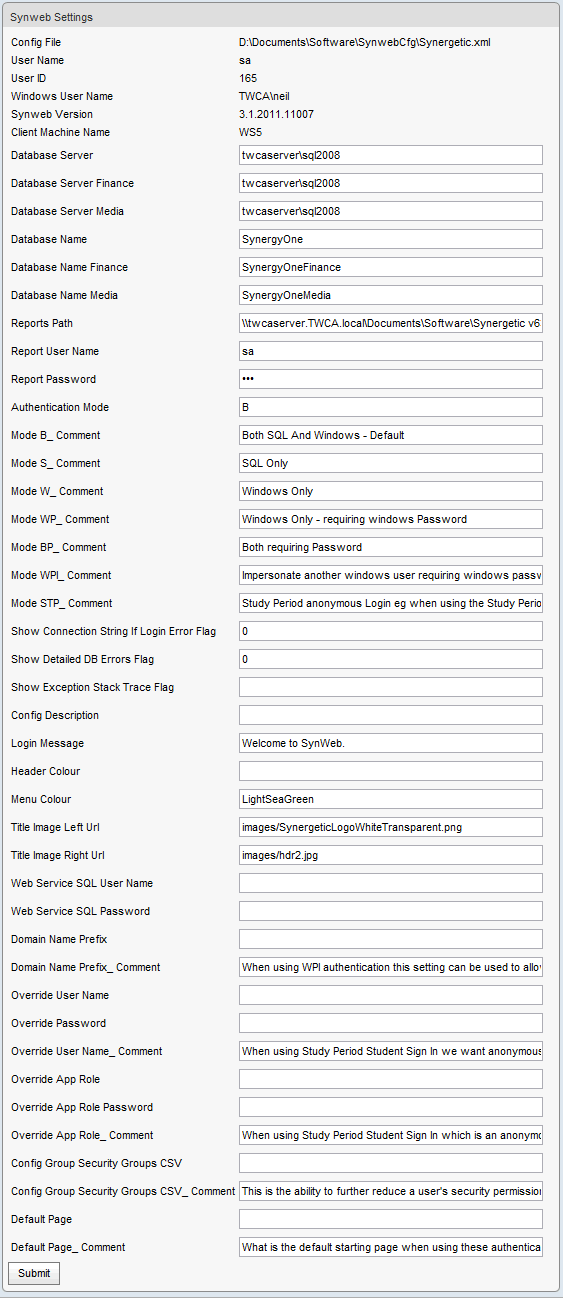

Config File

Location of the SynWeb configuration file.

User Name

Your Synergetic user name.

User ID

Your Synergetic ID.

Windows User Name

Your Windows user name.

SynWeb Version

Version of SynWeb your organisation is running.

Client Machine Name

Name of the computer SynWeb is open on.

Database Server

Name of the database server.

Database Server Finance

Name of the financial database server.

Database Server Media

Name of the media database server.

Database Name

Name of the database.

Database Name Finance

Name of the financial database.

Database Name Media

Name of the media database.

Reports Path

Location of the reports run by Crystal Reports.

Reports User Name

User name used to connect to Crystal Reports.

Reports Password

Password used to connect to Crystal Reports.

Authentication Mode

Authentication mode used by SynWeb:

• W - Windows Authentication is used
• WP - Windows Authentication is used with a password
• WPI - Windows Authentication impersonation is used with password
• S - SQL authentication is used
• B - both SQL and Windows Authentication can be used
• BW - both SQL and Windows Authentication can be used with a password
• STP - Study Period anonymous login is used.
• SAML - Third party SAML based Identity Provider (IdP) is used.

Note: When using SAML, values are required for OverrideUserName, OverridePassword, SAMLSSOHttpUrl, SAMLLogoutHttpUrl, SynWebLoginHttpUrl and ClaimAttributeName.

Mode B_ Comment

Comment to explain authentication mode B.

Mode S_ Comment

Comment to explain authentication mode S.

Mode W_ Comment

Comment to explain authentication mode W.

Mode WP_ Comment

Comment to explain authentication mode WP.

Mode BP_ Comment

Comment to explain authentication mode BP.

Mode WPI_ Comment

Comment to explain authentication mode WPI.

Mode STP_ Comment

Comment to explain authentication mode STP.

Mode SAML_Comment

Comment to explain authentication mode SAML.

Mode AAD_Comment

Comment to explain authentication mode AAD.

Show Connection String if Login Error Flag

Set to 1 to display the database connection string when a login error occurs.

Note: For security purposes, this should be set to 0 unless you are diagnosing a problem.

Show Detailed DB Errors Flag

Set to 1 to display detailed errors from the database.

Note: For security purposes, this should be set to 0 unless you are diagnosing a problem.

Show Exception Stack Trace Flag

Set to 1 to display detailed error-tracing information.

Note: For security purposes, this should be set to 0 unless you are diagnosing a problem.

Config Description

Text to appear in the web browser title bar and at the top of the login prompt.

Login Message

Message displayed beneath the button when users log into SynWeb.

Header Colour

Colour of the banner at the top of SynWeb.

Menu Colour

Colour of the menu bar at the top of SynWeb.

Title Image Left URL

URL (Universal Resource Location) of the image that appears in the top left of SynWeb.

Title Image Right URL

URL of the image that appears in the top right of SynWeb.

Synergetic Web Service Authorisation Url

Synergetic Authorisation web service URL provided by Synergetic.

Synergetic Web Service Authorisation Vendor Token Guid

Synergetic Authorisation web service vendor token GUID provided by Synergetic.

Synergetic Web Service Authorisation Vendor Password

Synergetic Authorisation web service vendor password provided by Synergetic.

Web Service Administration Product Flag

Cut down version of SynWeb to maintain web services only. Value will be set by Synergetic as required.

Domain Name Prefix

The domain name used to connect to the database.

Note: This overwrites any domain name typed in by the user.

Domain Name Prefix_Comment

Comment to explain the Domain Name Prefix.

Config Group Security Groups CSV

Comma-separated list of groups to restrict permissions to certain sections of SynWeb in certain circumstances. For example, to prevent a teacher marking attendances from home.

Config Group Security Groups CSV_Comment

Comment to explain the Config Group Security Groups CSV.

Default Page

The default starting page when using these authentication credentials.

Default Page_Comment

Comment to explain the Default Page.

Multi Tenant Application Flag

Whether the application is running under multi-tenant mode or not. Value provided by Synergetic.

User Form Simple Enable Query Flag

Used for user form simple, provided by Synergetic, value provided by Synergetic.

User Form Simple Sql User Name

SQL username for user form simple.

User Form Simple Sql Password

SQL user password for user form simple.

Recaptcha Public Key

Recaptcha public key for user form simple.

Recaptcha Private Key

Recaptcha private key for user form simple.

Recaptcha Enabled Flag

Recaptcha enabled flag for user form simple.

Recaptcha Url for Verification

Recaptcha verification URL for user form simple.

Poke Ssrs On Start Up Flag

Start SSRS service on SynWeb start-up.

Web Service Mobile Sqlite Session Seconds

Mobile web service session seconds.

Web Service Mobile Sqlite Path

Mobile web service SQL Lite database path.

Syn API Address

SynAPI (Custom web service) address for testing from SynWeb.

Syn API Vendor Token GUID

SynAPI (Custom web service) vendor GUID for testing from SynWeb.

Syn API Vendor Password

SynAPI (Custom web service) vendor password for testing from SynWeb.

SAMLSSO Http Url

SAML Single Sign On URL when using SAML authentication mode.

SAML Logout Http Url

SAML Logout URL when using SAML authentication mode.

SAMLX509 Certificate Path

SAML X509 certificate path when using SAML authentication mode.

SAML Request Format

Request format when using SAML authentication mode.

Syn Web Login Http Url

SynWeb login URL when using SAML authentication mode.

Claim Attribute Name

Name of the claim attribute.

AAD Instance

Instance of the Azure Active Directory.

Tenant

Tenant domain name.

Client Id

Client id.

App Resource Id

Application resource id.

App Base Address

Base address (url) for the application.

Web Service SQL User Name

User name used by web services or third party applications when connecting to the database.

Web Service SQL Password

Password used by web services or third party applications when connecting to the database.

WebServiceData-
SetName

The top-level XML data set name for web service output.

WebServiceData-
TableName

The top-level XML data table name for web service output.

Override User Name

User name to connect to the database when using anonymous authentication for student sign in.

Override Password

Password to connect to the database when using anonymous authentication for student sign in.

Override User Name_Comment

Comment to explain the Override User Name.

Override App Role

Database role used to limit access to SynWeb when using anonymous authentication.

Override App Role Password

Database password used to limit access to SynWeb when using anonymous authentication.

Override App Role_Comment

Comment to explain the Override App Role.

Button

Description

Save changes to the configuration settings.
