NZMOE eReturn window

The NZMOE eReturn window can be accessed from either the NZMOE tab of:

Import/Export Student Data, when processing roll returns
Current Student Maintenance, when retrieving and checking student NSNs and identity details.

To open the NZMOE eReturn window:

Either select:
- Module > Students > Student Data Import/Export from the main menu.
  The Curriculum Council tab of the Import/Export Student Data window is displayed.
- Module > Students > Current Student Maintenance from the main menu.
  The Personal tab of the Current Student Maintenance window is displayed.
Click the MOE tab or the NZMOE tab, respectively.
Click .

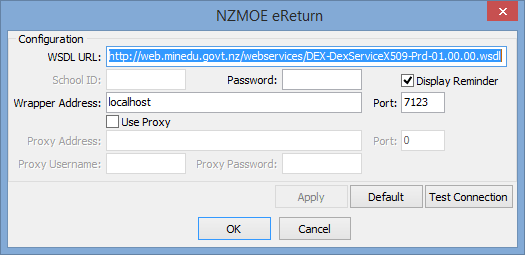

The NZMOE eReturn window is displayed.

Field	Description
WSDL URL	Web address of the web service that is used to transmit eReturn data from your organisation to the New Zealand Ministry of Education (NZ MOE). The web address does not need to be changed. The URL (Universal Resource Locator) address is: http://web.minedu.govt.nz/webservices/DEX-DexServiceX509-Prd-01.00.00.wsdl The web service conforms to the WSDL (Web Services Description Language) specification for the transmission of XML documents.
School ID	NNZ MOE identifier for your organisation. This is used to provide secure access to the web service. This is configured by Synergetic Management Systems and cannot be changed.
Password	Password used to provide secure access to the web service. The password is: supplied on an annual basis by the NZ MOE to Synergetic Management Systems distributed to the individual organisations by Synergetic Management Systems.
Display Reminder	If selected, a reminder message is displayed when the authorised user logs in.
Wrapper Address	Network address where WS Security Wrapper (Wrapper/WSS Wrapper) is installed. Communications between the Wrapper and the NZ MOE web service are secured via WS security and the use of digital certificates for encryption and signing. For example, the Wrapper Address is set to local host when Wrapper is installed on the same server as Synergetic.
Port	Port number that Wrapper is running at. The default port for Wrapper is 7123.
Use Proxy	Select, if a proxy server is used at your organisation. Note: You may need to ask your network administrator to set up the proxy server parameters.
Proxy Address / Port	IP address and network port of the proxy server to be provided to the WS Security Wrapper.
Proxy Username	Username to be provided to the WS Security Wrapper.
Proxy Password	Password to be provided to the WS Security Wrapper.

Field

Description

WSDL URL

Web address of the web service that is used to transmit eReturn data from your organisation to the New Zealand Ministry of Education (NZ MOE). The web address does not need to be changed.

The URL (Universal Resource Locator) address is:

http://web.minedu.govt.nz/webservices/DEX-DexServiceX509-Prd-01.00.00.wsdl

The web service conforms to the WSDL (Web Services Description Language) specification for the transmission of XML documents.

School ID

NNZ MOE identifier for your organisation. This is used to provide secure access to the web service.

This is configured by Synergetic Management Systems and cannot be changed.

Password

Password used to provide secure access to the web service.

The password is:

supplied on an annual basis by the NZ MOE to Synergetic Management Systems
distributed to the individual organisations by Synergetic Management Systems.

Display Reminder

If selected, a reminder message is displayed when the authorised user logs in.

Wrapper Address

Network address where WS Security Wrapper (Wrapper/WSS Wrapper) is installed. Communications between the Wrapper and the NZ MOE web service are secured via WS security and the use of digital certificates for encryption and signing.

For example, the Wrapper Address is set to local host when Wrapper is installed on the same server as Synergetic.

Port

Port number that Wrapper is running at.

The default port for Wrapper is 7123.

Use Proxy

Select, if a proxy server is used at your organisation.

Note: You may need to ask your network administrator to set up the proxy server parameters.

Proxy Address

/ Port

IP address and network port of the proxy server to be provided to the WS Security Wrapper.

Proxy Username

Username to be provided to the WS Security Wrapper.

Proxy Password

Password to be provided to the WS Security Wrapper.

Button	Description
	Save any changes made to the configuration settings.
	Set back to the default settings for your organisation, leaving School ID and its Password unchanged.
	Test the connection with the NZ MOE web service. The following dialog is displayed if the connection is successful. If not successful: check the configuration settings on this window see SMS data exchange set up and configuration in the Roll returns manual.

Button

Description

Save any changes made to the configuration settings.

Set back to the default settings for your organisation, leaving School ID and its Password unchanged.

Test the connection with the NZ MOE web service.

The following dialog is displayed if the connection is successful.

information - connection established successfully

If not successful:

check the configuration settings on this window
see SMS data exchange set up and configuration in the Roll returns manual.
