Creating personal details sections

You can create the Personal details section to allow community members to submit their:

• title
• full name
• date of birth.

Adding the elements

To add the elements:

1. Click the Elements tab. See Online form builder - Elements tab.
2. Click the Input Controls sub-tab.

   The Input Controls sub-tab is displayed.

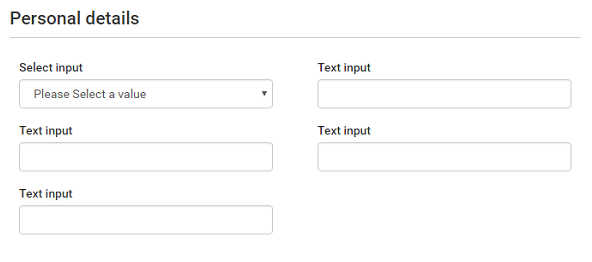

3. Drag and drop the following elements from the Input Controls tab into the Personal details section.



4. Click the Select Controls sub-tab.

   The Select Controls sub-tab is displayed.

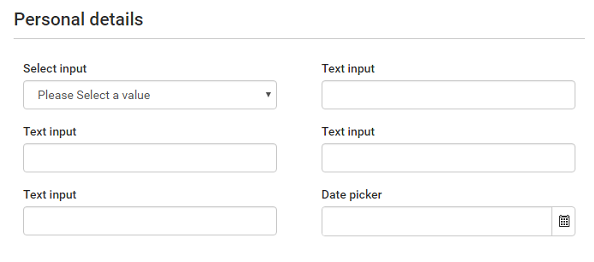

5. Drag and drop the Date Picker element into the Personal details section.



   The elements are added.

6. Click .

Updating the element text

To update the element text:

1. Click the Properties tab. See Online form builder - Properties tab.

   The Properties tab is displayed.



2. Select the Select Input field.
3. Type Title into the Label Text field.
4. Select a Text Input field.
5. Type a label into the Label Text field. You can type either:
   • Surname
   • Given name
   • Previous surname
   • Preferred.
6. Repeat steps 4 and 5 for until all Text input elements have unique label text.
7. Select the Date Picker element.
8. Type Date of Birth into the Label Text field.

   The element text is updated.



9. Click .

Mapping the elements to Synergetic fields

To map the elements to Synergetic fields:

1. Click the Properties tab. See Online form builder - Properties tab.

   The Properties tab is displayed.



2. Select the Title field.
3. Select spiOnlinePublicCommunityContactDetails from the Object Mapping drop-down list.



4. Select Title from the Field/Param Mapping field.



5. Select luTitle from the Data Bind drop-down list.



6. Select one of the following elements:
   • Surname
   • Given Name
   • Previous Surname
   • Preferred
   • Date of Birth.
7. Select spiOnlinePublicCommunityContactDetails from the Object Mapping drop-down list.



8. Select the correct option from the Field/Param Mapping field: You can select either:
   • Surname for the Surname field
   • Given1 for the Given Name field
   • SurnamePrevious for the Previous Surname field
   • Preferred for the Preferred field
   • BirthDate for the Date of Birth field.
9. Repeat steps 6 through 8 until all the elements are mapped to Synergetic fields.

   The elements are mapped to Synergetic fields.

10. Click .

Now we can create the Contact details section. See Creating the Contact details section.

Last modified: 12/07/2017 5:10:37 PM
