Creates a one column page layout panel element that can contain other form elements.

Note: You need to define the page layout before you can add additional elements. See Defining the page layout.

Creates a two column page layout panel element that can contain other form elements.

Note: You need to define the page layout before you can add additional elements. See Defining the page layout.

Creates a text field that can validate information to ensure users enter correct details.

Note: For information about validation rules, see Applying validation rules.

Creates a button.

You can create:

• Submit button. See Creating submit buttons.
• Save for later button. See Creating save for later buttons.
• Duplicate panel button. See Creating duplicate parent panel buttons.

Creates an expandable text area that can validate information to ensure users enter correct details.

Note: For information about validation rules, see Applying validation rules.

Creates a drop-down list that can be populated with Synergetic lookup table values.

Note: For information about populating Select input elements with lookup table values, see Populating drop-down lists with Synergetic lookup table values.

Creates a checkbox.

Creates a date picker that also allows the user to select a date from a calendar.

Creates an HTML heading.

Creates static formatted text using both quick keys and HTML.

Creates a dividing line to separate content.

Creates an activity flag that can be mapped to activities defined in the luActivity lookup table. See luActivity lookup table in the Synergetic System maintenance manual.

This element is only useful for Application or Enquiry type forms (not Basic forms), as only enquiries and student-like entities have an Activity tab. When the application or enquiry is submitted, the selected activities are created in the future/enquiry student record.

The control can be configured to allow a text box to appear when the user clicks the checkbox. The user's text is added to the comment field in the activity.

Note: For information about mapping Activity Name elements to Synergetic activities, see Mapping activity elements to Synergetic activities.

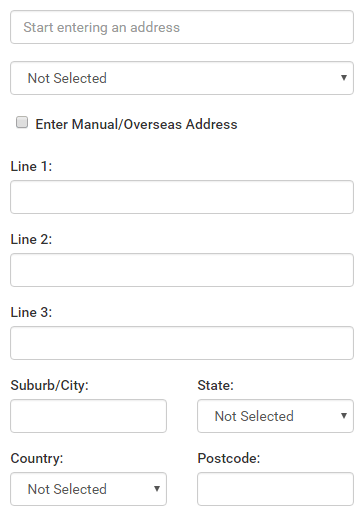

Creates a set of address fields that use the Quick Address Validation System (QAS) to ensure only valid addresses are entered.

To search for an address:

1. Select the country using the Country drop-down list.
2. Type the address into the Address search field.

   The list of matching addresses is displayed.

3. Select the address you would like to add.

Tip: You can narrow search results by typing more details of the address.

Note: For information about enabling address validation using the Quick Address System (QAS), see Configuring address validation in the Synergetic System maintenance manual.

Creates a file uploader that allows users to attach documents when they complete a form.

Note: You can only have one file uploader.

Only Application form types can accept documents. When the submitted application is transferred to future students, the documents appear on the DocMan tab (viewable in both Windows and SynWeb versions).

Note: All submitted documents have the same document classification, description, and source code. The description that appears in the published form does not appear anywhere in DocMan.

Tip: Where multiple files are being submitted, a Windows user needs to update the descriptions manually; to more accurately reflect each document.
