Current Student Maintenance - Timetable bar

Use the Timetable bar to display the student's timetable, and study periods they have signed into and special events for the specified date.

Opening the Timetable bar

Current Student Maintenance - Timetable bar key fields and buttons

Selection area

The selection area consists of:

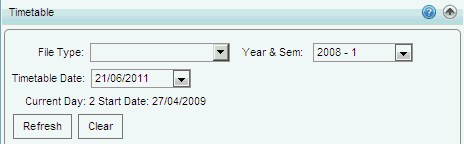

Student Maintenance - Timetable bar (selection area, synweb)

Fields

Field

Description

File Type

Classes can be either academic or co-curricular.

Change the file type selection to view classes in other areas.

Note: Contact the system administrator if you do not have a blank file type in the drop-down list.

Year & Sem

Select the year and semester you want to view.

Timetable Date

Timetable date.

Note: The default date is today's date. Adjust the date if necessary.

Tip: To select a different date, click the Down arrow button next to the Timetable Date field, select the new date on the calendar, then click Refresh button.

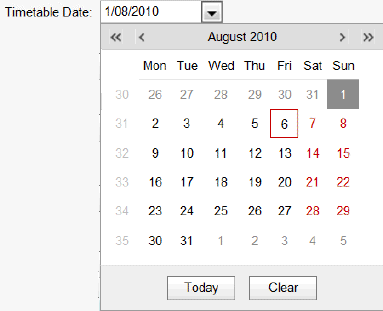

Timetable Date calendar

Current Day

Timetable cycle day.

Start Date

Start date for the current timetable cycle.

Buttons

Button

Description



Refresh the view of the timetable after you have changed the:

  • File Type
  • Timetable Date.

Clear Button

Clear the information you have changed.

Timetable grid area

The grid area consists of:

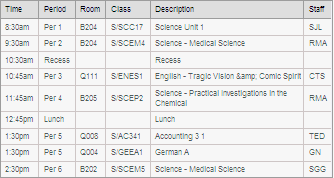

Student Maintenance - Timetable bar (grid area)

Timetable grid area fields

Lists the timetable of classes for the file type and date specified.

Field

Description

Time

Scheduled start time.

Period

Description for the period of time.

Room

Room code where the class is taking place.

Class

Class code.

Description

Description of the class.

Staff

Staff code.

Launch links

Link

Description

Class

Launch into Class Maintenance for the selected class.

Click on the Class launch link.

Class field

See Maintaining classes in the Assessments and reports manual.

Note: You can click on Period, Room, Description or Staff.

Legend

Student Maintenance - Timetable bar (legend, synweb)

The Legend area contains an explanation for the formatting applied to each of the classes displayed in the grid area. Only the relevant legend entries are displayed, depending on the status of the classes.

Colour and font

Description

Blue, normal font

Class containing students.

In the following example, Dr Gregg is taking the Medical Science class S/SCEM5.

Student Maintenance - Timetable bar (grid area, cut down, normal class legend, synweb)

Grey, normal font

Periods which do not require attendance entry. For example, recess and lunch.

Student Maintenance - Timetable bar (grid area, cut down, viewed class legend, synweb)

Common buttons

Button

Description

Navigation buttons

Navigate between the selected students.

Available students

Criteria button

Display the Current Student Maintenance Search Criteria window.

Current Student Maintenance Search Criteria (synweb, cut down)

You can update the search criteria and search for new students. See Searching for students.

Customise tabs button (synweb)

Customise how the bars are displayed. See Customising navigation bars in the Introduction manual.

New Task button (synweb)

Create a new task relating to the current student. See Managing tasks in the Introduction manual.

Last modified: 7/03/2013 4:16:51 PM
